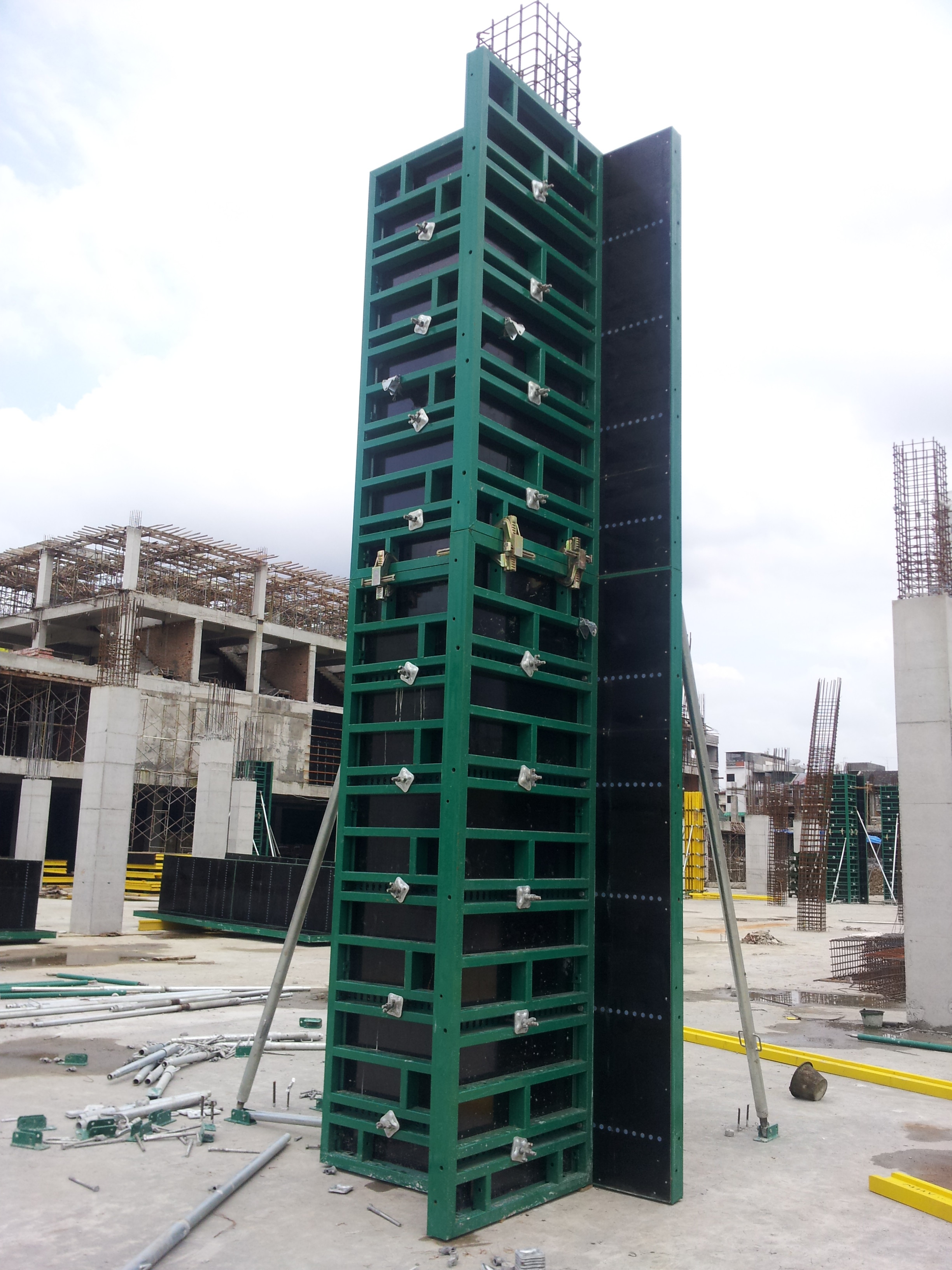

120 Adjustable steel frame column formwork-2 - Extremely long life span , More repeat uses
Overview
This system can bear higher fresh concrete pressure, permitting more puring height and speed. Meanwhile the unique frame shape and clamp allow the tignt coonnection between panels in both horizontal and vertical direction.
Characteristics
1 . The formwork measurement is highly standardized and easy to assemble. It can be customised to cater to the non-standard measurements by using the wood clamping side method.
2 . The frame rim has high rigidity and is able to withstand reasonable stress. It has a lateral pressure between 60KN/m2 to 80KN/m2
3 . It uses standardized adjustable Steel frame clamps, which is able to clamp tightly. The formwork is fast and convenient to assemble.
4 . There is an opening at the corner of the formwork, which is convenient to fix to its position or to be dismantled.
5 . The steel frame and plywood are connected by screwing from the back and this results in a good concrete forming effect.
6 . There is a complete range of formwork systems with matching accessories. This provides the flexibility to be assembled according to the construction projects requirements.
Value-added Service
ZNLS will provide relating technical service including formwork & scaffolding proposal drawing, material list, shop drawing, calculation sheet, loading capacity analysis and assembly instruction on site and other after-sale service. Moreover, cargo transport arrangement and tracking, relating import and export documents will be supplied as customs’ requirements.
